SYSTEM: FIBERSHIELD® MODEL: FIBERSHIELD®-E

  • Fibershield-E

Product description

In the event of an alarm, self-closing non-thermally insulating fire curtain in vertical installation position and closing direction with small winding housing and guide rails.

TypeNon-insulating fire curtain
VerificationCE marking according to EN 16034:2014 in conjunction with EN 13241:2003+A2:2016
Closing directionFrom top to bottom
Fire resistanceE 30 – EW 90 | Tested according to EN 1634-1:2014+A1:2018 | Classified according to EN 135012:2016
Closing cyclesC0, C, C1, C2 | Tested according to EN 12605:2000-08 and EN 12604:2017-12 | Classified according to EN 13501-2:2016
Fire behaviour of textileA2-s1, d0; B-s1, d0; E-d2 | Tested according to ISO 1716 and EN 13823 or ISO 11295-2 | Classified according to EN 13501-1:2018
Environmental conditionsSpecial environmental conditions are not taken into account (e.g. humidity > 80 %, ambient temperature < 5 °C and > 45 °C, wind loads etc.).
Visible surfacesgalvanised, RAL - smooth - silk-gloss - standard colour, NCS - standard colour
Fibershield-E

Legend System components:
1 = Smoke detector
2 = Winding case
3 = Guide rail
4 = Control module
5 = Trigger device (see the valid general type approval of the brake system for design details of the electrical components.)

Legend Dimensioning
Structure
q = Clear shell construction height
x = Clear shell construction width
System
s = System height
r = Clear system height
y = Clear system width
z = System width
Winding case
t = Depth
h = Height
Guide rail
a = Width
b = Depth
b = Cover

Structural system design (system drawing)

The combination of classifications or the ratio of clear system width to clear system height can reduce the stated maximum dimensions, the dimensions of the winding enclosure and the guide rails can vary. The specifications on the offer apply.

ClassificationFabricSystem width (SB)Drop length (AL)t (mm)h (mm)
E 303350 x 2815Ecotex 1100 A2140Type A, BType 1, 2
E 603350 x 2815Ecotex 1100 A2140Type A, BType 1, 2
E 903350 x 2815Ecotex 1100 A2200Type A, BType 1, 2
EW 303350 x 2815Ecotex 1100 A2140Type A, BType 1, 2
E 306800 x 6800Heliotex140Type A, BType 1, 2
E 906000 x 6000Heliotex200Type A, BType 1, 2
EW 906000 x 6000Heliotex200Type A, BType 1, 2
C06000 x 6000Heliotex
C0, C1, C25880 x 4280Ecotex 1100 A2

The installation situation must comply with the building code requirements of the country of installation. The fire resistance of a ceiling or wall support structure and the adjacent components must at least correspond to that of the fire and/or smoke protection closure/fire and/or smoke protection curtain. Proof of the stability and serviceability of the adjacent walls and components must be provided under general ambient conditions and in the event of fire. See also notes on the standard supporting structure in EN1366-7:2004 or EN1363-1:2020. The fire protection system must not be subjected to any additional loads other than its own weight, even in the event of fire.
* Deviations from size dimensions on request
** Tested wall types according to the installation instructions

Winding case

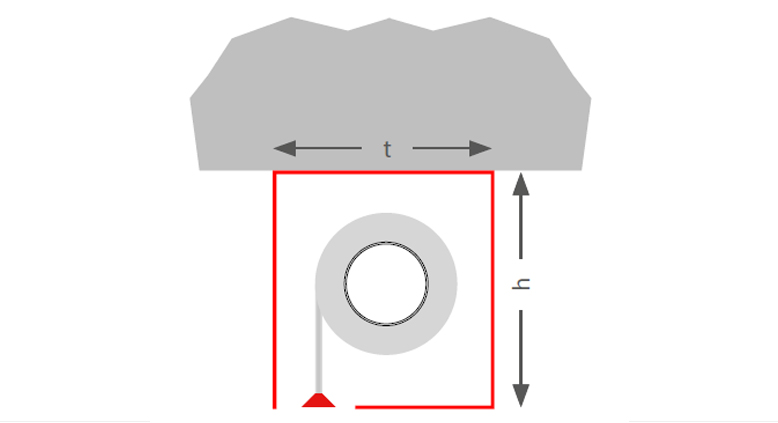

Deckenmontage
Ceiling mounting
Type A: t = 200 mm, h = 220 mm
Type B: t = 250 mm, h = 260 mm

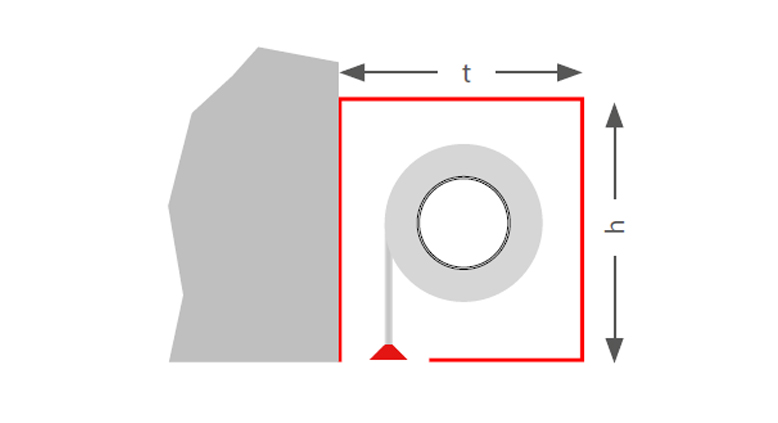

Wandmontage
Wall mounting
Type B: t = 200 mm, h = 220 mm
Type C: t = 250 mm, h = 260 mm

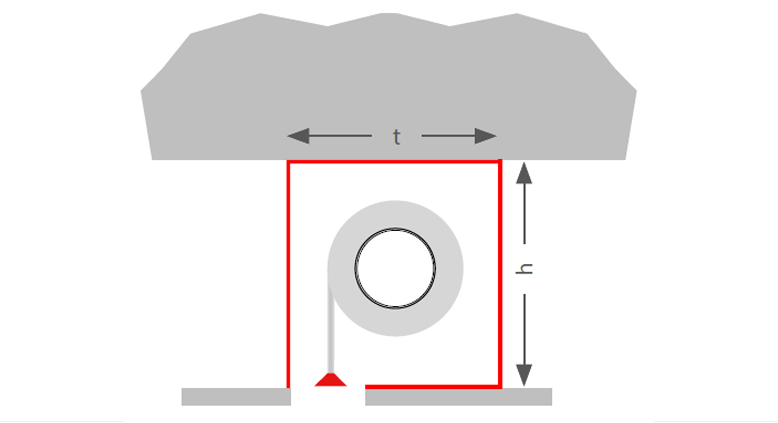

Deckenmontage Unterdecke
Ceiling mounting suspended ceiling
Type B: t = 200 mm, h = 220 mm
Type C: t = 250 mm, h = 260 mm

Guide rails


Typ 1
Type 1(Wall mounting)
a = 80 mm

b = 60 mm
c ≥ 0 mm
FSV-E-80-KB
Type 2 (Soffit mounting)
a = 80 mm
b = 60 mm
FSV-E-80-KN
Type 2 (Niche mounting)
a = 80 mm
b = 60 mm

aN = 85 mm
bN = 70 mm
