Universal-B

Conveyor system closure designed as an enclosed, versatile slider

Product description

A versatile solution with smooth surfaces for high aesthetic standards: The robust slider closure features an encapsulated design. When parked, the slider is positioned inside the casing. the system consists of a load-bearing steel structure lined with Promatect H panels. Walls can be completely replaced by storey-high elements. Universal-B is ideally suited for interrupted and separated conveyor systems, e.g. belt, roller and suspension chain conveyors, sorters and newspaper conveyors.

Universal-B

Type

Fire protection closure as part of track-bound conveyor systems

Closing direction

from left to right • from right to left • from top to bottom • from the bottom to the top

Fire resistance

T 90

Re-opening

manual

Conveyor system

Interrupted conveyor system • Continuous belt conveyor system • Continuous travelling carriages • Sorter • Newspaper conveyor • Continuous suspension chain conveyor • Continuous roller conveyor system • Continuous conveyor system • Sloping track • Round belt conveyor

  • Universal-B
  • Universal-B
  • Universal-B
  • Universal-B
  • Universal-B
  • Universal-B

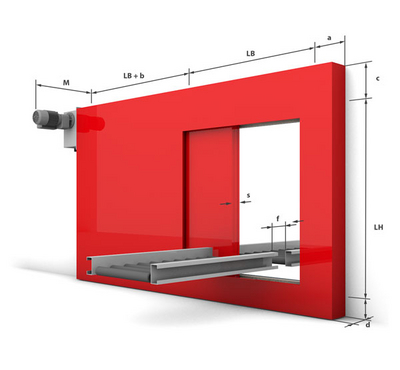

Constructive system design - Horizontal


Required wall quality

Masonry

d ≥ 240 mm

Concrete

d ≥ 140 mm

Aerated concrete

d ≥ 200 mm

Technical feasibility

LH

200 mm - 2700 mm

LW

200 mm - 2500 mm

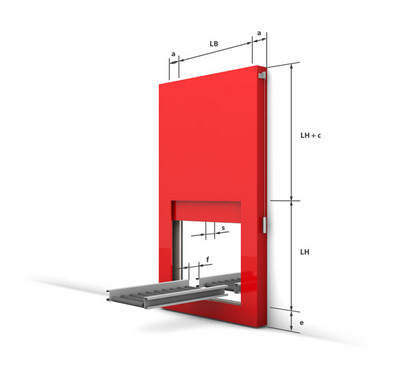

Constructive system design - Vertical


Required wall quality

Masonry

d ≥ 240 mm

Concrete

d ≥ 140 mm

Aerated concrete

d ≥ 200 mm

Technical feasibility

LH

200 mm - 2700 mm

LW

200 mm - 2500 mm
