      Fire protection curtains

      In case of fire, fire protection curtains close wall and ceiling openings. Their construction (roll-down or folding technique) and the use of different fabrics provide for a wide range of applications as well as different protection goals, classifications and time classes. The casing and guide rails of the highly flexible systems blend almost invisibly into the building and allow plenty of scope for sophisticated architecture and open room concepts.

    • Conveyor system closures

      Conveyor system closures

      Various production and logistics processes call for the most diverse types of conveyor systems. If these conveyor lines pass through fire-retardant or fire-resistant walls or ceilings, the openings required for this purpose must be provided with fire protection closures to prevent the spread of fire through the conveyor system or the goods conveyed. In the event of fire, conveyor system closures (CSC for short) must close these openings immediately and automatically. Fire resistance classified according to DIN EN 13501-2 is just as important as the smooth clearance of the closing areas in the event of a fire.

    • Smoke curtains

      Smoke curtains

      A smoke apron is a part of a smoke control system which also includes other components such as natural smoke and heat exhaust ventilators (EN 12101-2) and mechanical smoke and heat exhaust ventilators (EN 12101-3). Smoke aprons restrict the movement of combustion gases within a building in case of fire.

    • Smoke protection curtains

      Smoke protection curtains

      Once closed, smoke protection curtains (SPC) restrict the passage of smoke during the phase of fire formation, so that in the event of a fire, there is enough time to rescue people and animals from the room behind the curtain and to recover material assets without the need for respiratory equipment.

    • Tube sealings

      Tube sealings

      The solution for issues with fire protection dampers in ventilation and air conditioning systems in conveyor processes. Stöbich offers fire protection for pneumatic conveyor lines the closing elements of which are not exposed to the flow of conveyed material. This way, the closing element cannot be damaged or contaminated by abrasive conveyed goods.

    • Control units

      Control units

      Each automatic fire protection system needs a control unit. They are critical to safety, because a failure of this function means that the entire investment into a fire protection sealing has been in vain. Control units coordinate both fire detection and interaction with other control units, such as higher-level building control systems or clearing of the closing area of conveyor system closures.

  • References
  • Theme worlds
  • News
  • Contact
Live fire tests on site

Live fire tests on site

Come and see the performance capability of modern fire protection textiles in our mobile fire test container.

Come and see the performance capability of modern fire protection textiles in our mobile fire test container.

Live fire tests on site

A textile withstanding a temperature of more than 1000 °C which remains intact for several hours? A fabric with a thickness of 1 mm which reduces the passage of radiation by approx. 90 % (to put it simply)? Come and see the performance capability of modern fire protection textiles in a live fire test.

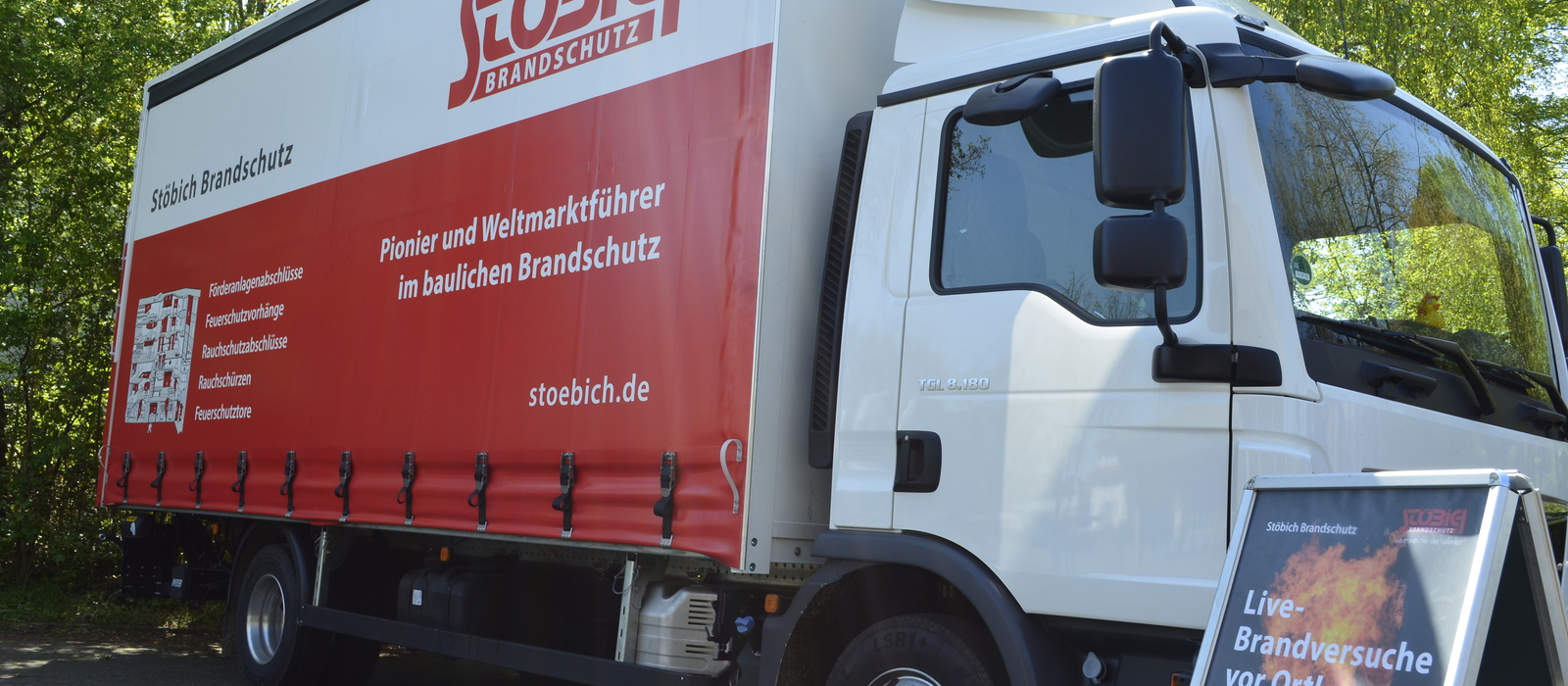

The mobile fire container allows you to experience first hand how effective modern textile fire protection products are. This mobile container, which was specially developed for demonstration purposes from a standard container, is used at exhibitions or customer events. Special Stöbich fire protection fabrics are installed inside the container to demonstrate their protection properties in a simulated smoke development and control situation or in a simulated fire inside the container. Materials used are, for instance, the fire protection fabric Heliotex and the passable smoke protection curtain Stripecoil. The demonstrations always take place outdoors.

Fire protection fabric with EW classification

Brick partition with limitation of radiation penetration

The example of the Heliotex fabric clearly shows how well the radiation penetration through this fabric is reduced. Except: 13501-2 Classification of construction products and building elements: The radiation limit W is the ability of a part to withstand loads on one side so that the probability of fire spreading as a result of significant radiated heat is reduced, either by the part or by a surface of the part facing away from the fire. It may also be necessary for the part to protect persons close by.

Use of smoke barriers in passageways

The passable and floor closing smoke skirt "Stripecoil"

The passable smoke barrier Stripecoil offers smoke protection and passage for people at the same time when closed. It thus fulfils the functions of smoke section formation in pedestrian passage areas or escape routes and can be designed with unlimited width due to the double corrugated system.



The passable smoke barrier , but still ground-closing
