ECClos®-Q

  • ECClos-Q

Product description

The horizontally slewing damper construction requires very little space in the lintel area and is therefore an interesting option for conventional closures in damper design. ECClos®-Q meets the requirements of classifications EI 30 to EI 120 and EW 240 (aerated concrete). The damper blade features a very stable sandwich construction and is completely enclosed by a sheet metal casing. ECClos®-Q is suitable for continuous and separate conveyor systems, such as baggage belt conveyors. For continuous conveyor systems, the fixed panel is customised and the surface can be designed according to customer requirements in various designs.

TypeFire protection closure as part of track-bound conveyor systems
Proof of usabilityEuropean Technical Assessment - ETA
Closing directionpivoting vertically
Fire resistanceE 240 | EI₁ 30 | EI₁ 60 | EI₁ 90 | EI₁ 120 | tested according to DIN EN 1366-7 | classified according to DIN EN 13501-2
Re-openingC5 number of closing cycles 200.000
Wiederöffnungelectromotive (standard)
Conveyor systemContinuous belt conveyor system | Continuous suspension chain conveyor | Continuous roller conveyor system | Continuous conveyor syste

Downloads

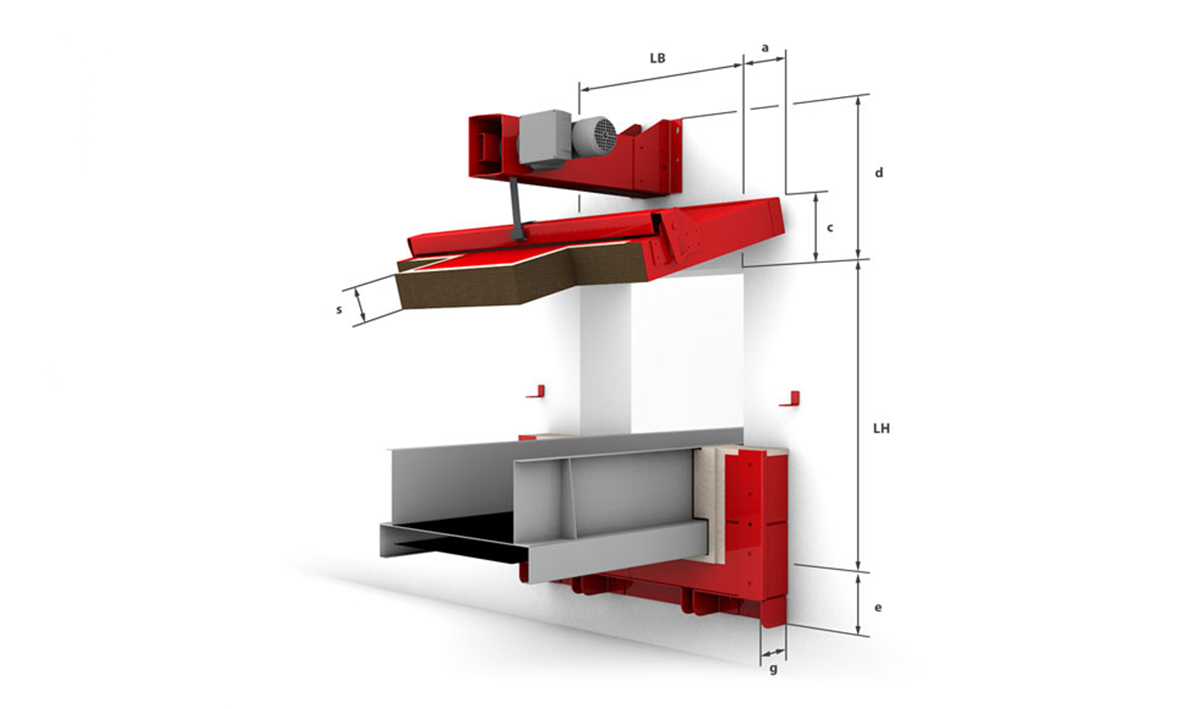

Structural system design (system drawing)

ECClos-Q
a = 160 | c = 257 | d = 640 | e = 180 | g = 150 | s = 122
Required wall quality
Wall thicknessd ≥ 200 mm
Masonryaccording to DIN 1053-1
Concreteaccording to DIN 1045
Aerated concreteaccording to DIN 4165
Lightweight stud wallaccording toDIN 4102

Approval range
LB850 mm - 1955 mm
LH900 mm - 1380 mm


Technical feasibility
LBup to 4500 mm
LHup to 2500 mm
