GCC

GCC, a conveyor closure for (almost) all cases

GCC, a conveyor closure for (almost) all cases

It has been over 40 years since company founder Dr.-Ing. Jochen Stöbich developed the first conveyor closure (FAA). Today, STÖBICH is a leader in preventive structural fire protection and develops product innovations such as the Global Conveyor Closure (GCC).

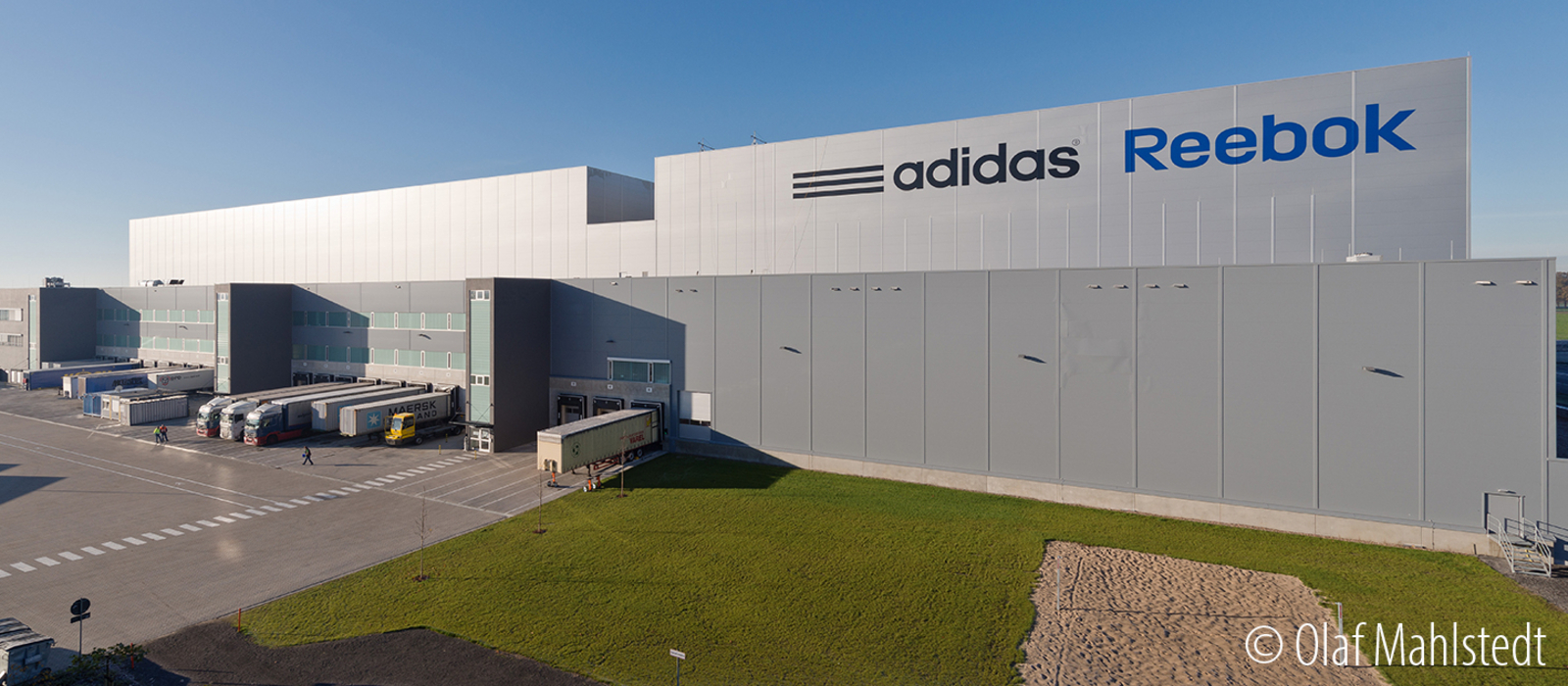

It can be found, among other places, in the logistics center of the brand-name shoe manufacturer adidas in Rieste, where it provides fire protection for the conveyor system: We are talking about the GCC, the Global Conveyor Closure. Conveyor Closure (literally means "closure of the conveyor belt." In the event of a fire, the alarm is triggered and the GCC automatically closes the corresponding opening in the conveyor. In this way, it prevents the flames and fire gases from spreading to other sections of the production hall, as happened in the major fire at Bahlsen in 1978. This inferno is considered the big bang of the STÖBICH empire because it inspired Dr.-Ing. Jochen Stöbich to develop the first conveyor closure.

The "Global" in the product name, by the way, refers to the applicability of the conveyor system closure: the GCC is a European tested product according to EN 1366-7 up to a required protection classification of EI 90 and thus a global or European player among FAAs.

What is special about the GCC?

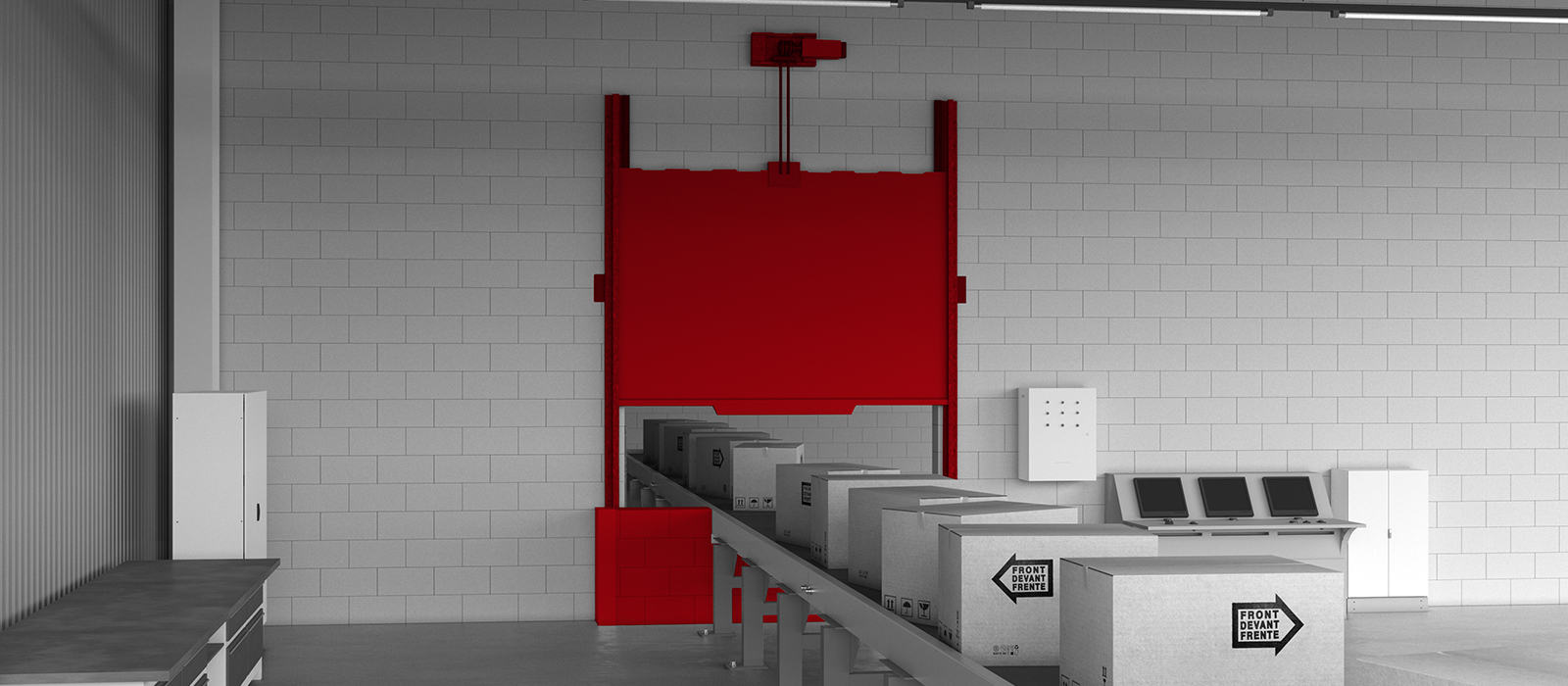

The GCC is a so-called fire protection closure in the course of web-bound conveyor systems for a) separated and b) continuous conveyor technology. a) means that the conveyor technology is executed separately in the closing area of the FAA (necessary gap dimension approx. 80 mm). In the case of b), the conveyor system is routed through the FAA without being separated. In this case, the FAA consists of a slide gate above the conveyor system as a moving part and a conveyor system bulkhead (fixed panel for short) below the conveyor level.

  • GCC
  • GCC-1

What are the advantages of the GCC?

- Is assembled on site from finished elements (slider, guides, crimping, drive unit)
- can therefore be easily transported
- adapts accordingly to the respective installation situation and conveyor technology variant
- available in vertical and horizontal closing direction

The slim, space-saving system requires only a small overlap on the wall around the opening. Outstanding feature of the GCC is the very thin gate blade thickness. Even small conveying media for totes or cartons can thus be designed as separate conveying systems, since only a very small separation point is required. In this case, several conveying sections through one wall opening can be realized without any problems. This makes the GCC so ideal for interrupted conveyor technology, but also for roller, belt and chain conveyors.

➥ Technical data and further info on the GCC provide a good insight into the product. If you have any specific questions, please feel free to contact us directly at ➥ contact.
