The walk-through, floor-sealing smoke curtain. Stripecoil is the ideal smoke curtain for pedestrian passageways and escape routes – designed to meet the temperature class requirements of DIN EN 12101 up to D 120 (heat resistance for over 120 minutes at a test temperature of max. 600 °C) and DH 30 (heat resistance for over 30 minutes with a standard temperature curve ETK). The smoke curtain closes without external power using the “Gravigen” drive system.
Function
Textile smoke apron
Certification
CE marking in accordance with DIN EN 12101-1:2005+A1:2006
Fabric
Modutex 600 A2
Closing direction
From top to bottom
Closing cycles
1,000 cycles according to DIN EN 12101-1+A1:2006
Guide type
without guide rails
Classification
DH 30 | D 120 | Classification according to DIN EN 12101-1
Triggering
Approved hold-open system | To be provided on site
Due to the combination of classifications or the ratio of clear system width to clear system height, the stated maximum dimensions may be reduced and the dimensions of the housing may vary. The specifications in the quote apply.
Design
Fabric
System width (BJ)
Unwinding length (LH)
Depth (BX)
Height (BW)
Stripecoil 1W*
Modutex 600
≤ 1,8 m
≤ 3,5 m
190 mm
290 mm
Stripecoil 1W*
Modutex 600
> 1,8 m – ≤ 5,8 m
≤ 3,5 m
190 mm
225 mm
Stripecoil 2W*
Modutex 600
≥ 1,4 m – ≤ 2,7 m
≤ 3,5 m
330 mm
270 mm
Stripecoil 2W*
Modutex 600
> 2,7 m – ≤ 7,4 m
≤ 3,5 m
330 mm
200 mm
* Stripecoil 1W has only one winding tube ** Stripecoil 2W has two opposing winding tubes
Legend System components: 1 = Smoke detector 2 = Casing 3 = Fixing bracket 4 = Fabric 5 = Closing element 6 = Tubular motor 7 = Control module 8 = Control with operating unit 9 = Manual release
System Component Legend: System BJ = System width LH = Clear system height Enclosure BW = Height BX = Depth
System Architecture of Stripecoil 2W
Legend System components: 1 = Smoke detector 2 = Casing 3 = Fixing bracket 4 = Fabric 5 = Closing element 6 = Tubular motor 7 = Control module 8 = Control with operating unit 9 = Manual release
Legend: System Components: System BJ = System width LH = Clear system height Enclosure BW = Height BX = Depth

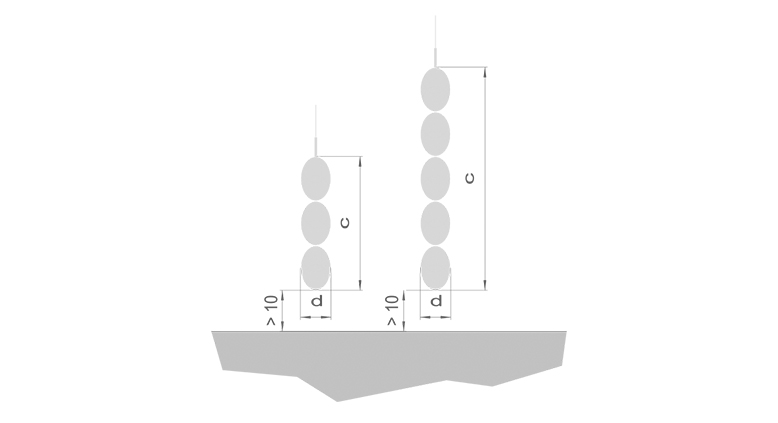

Closing strips
Flexible closing strip d = 24 mm
c = 05/175 mm
Housing
Stripecoil 2W for wall mounting

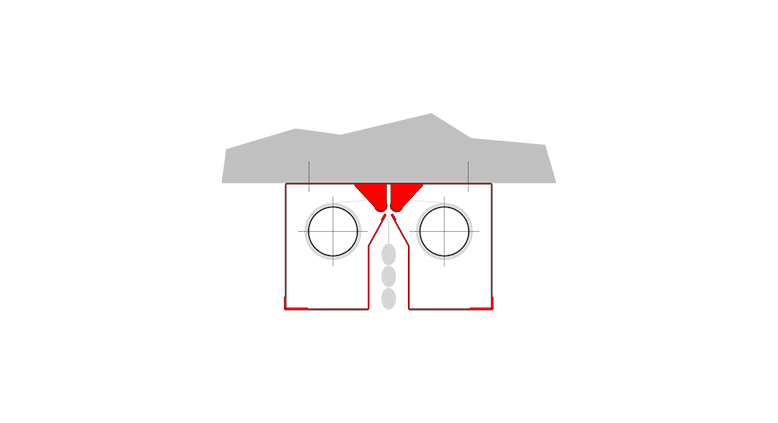

Stripecoil 2W for ceiling mounting
Stripecoil 1W for wall mounting
Stripecoil 1W for ceiling mounting
Side clearance
without side doubling
side doubling
Stripecoil 1W | SR ≥ 45 mm (motor side) and SR ≥ 25 mm (opposite side) Stripecoil 2W | SR ≥ 10 mm
